TRUCK SCALES

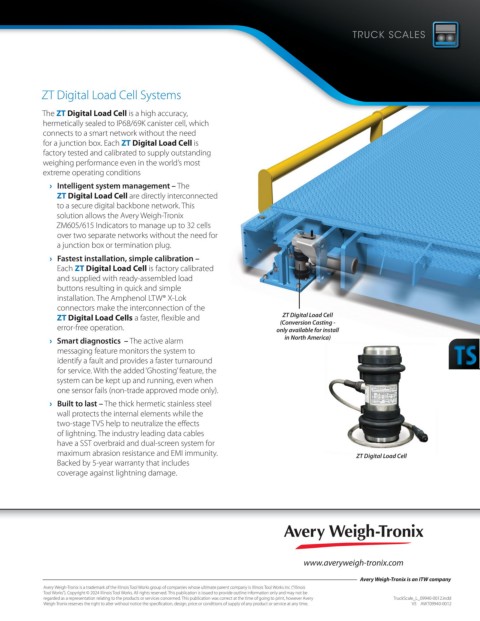

ZT Digital Load Cell Systems

The ZT Digital Load Cell is a high accuracy,
hermetically sealed to IP68/69K canister cell, which
connects to a smart network without the need
for a junction box. Each ZT Digital Load Cell is
factory tested and calibrated to supply outstanding
weighing performance even in the world’s most
extreme operating conditions
› Intelligent system management – The
ZT Digital Load Cell are directly interconnected
to a secure digital backbone network. This
solution allows the Avery Weigh-Tronix
ZM605/615 Indicators to manage up to 32 cells
over two separate networks without the need for
a junction box or termination plug.
› Fastest installation, simple calibration –
Each ZT Digital Load Cell is factory calibrated
and supplied with ready-assembled load
buttons resulting in quick and simple
installation. The Amphenol LTW® X-Lok
connectors make the interconnection of the
ZT Digital Load Cells a faster, flexible and ZT Digital Load Cell
(Conversion Casting -
error-free operation. only available for install
› Smart diagnostics – The active alarm in North America)
messaging feature monitors the system to
identify a fault and provides a faster turnaround
for service. With the added ‘Ghosting’ feature, the
system can be kept up and running, even when
one sensor fails (non-trade approved mode only).
› Built to last – The thick hermetic stainless steel
wall protects the internal elements while the
two-stage TVS help to neutralize the effects
of lightning. The industry leading data cables
have a SST overbraid and dual-screen system for
maximum abrasion resistance and EMI immunity. ZT Digital Load Cell
Backed by 5-year warranty that includes
coverage against lightning damage.
