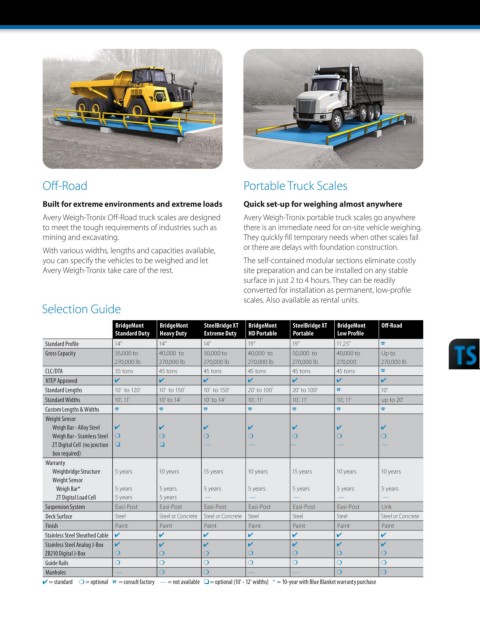

Off-Road Portable Truck Scales

Built for extreme environments and extreme loads Quick set-up for weighing almost anywhere
Avery Weigh-Tronix Off-Road truck scales are designed Avery Weigh-Tronix portable truck scales go anywhere
to meet the tough requirements of industries such as there is an immediate need for on-site vehicle weighing.
mining and excavating. They quickly fill temporary needs when other scales fail
With various widths, lengths and capacities available, or there are delays with foundation construction.
you can specify the vehicles to be weighed and let The self-contained modular sections eliminate costly
Avery Weigh-Tronix take care of the rest. site preparation and can be installed on any stable
surface in just 2 to 4 hours. They can be readily
converted for installation as permanent, low-profile
scales. Also available as rental units.
Selection Guide

BridgeMont BridgeMont SteelBridge XT BridgeMont SteelBridge XT BridgeMont Off-Road
Standard Duty Heavy Duty Extreme Duty HD Portable Portable Low Profile
Standard Profile 14” 14" 14" 19” 19” 11.25” 
Gross Capacity 35,000 to 40,000 to 50,000 to 40,000 to 50,000 to 40,000 to Up to
270,000 lb 270,000 lb 270,000 lb 270,000 lb 270,000 lb 270,000 270,000 lb
CLC/DTA 35 tons 45 tons 45 tons 45 tons 45 tons 45 tons 
NTEP Approved       
Standard Lengths 10’ to 120’ 10’ to 150’ 10’ to 150’ 20’ to 100’ 20’ to 100’  10’
Standard Widths 10’, 11’ 10’ to 14’ 10’ to 14’ 10’, 11’ 10’, 11’ 10’, 11’ up to 20’
Custom Lengths & Widths       
Weight Sensor
Weigh Bar - Alloy Steel       
Weigh Bar - Stainless Steel       
ZT Digital Cell (no junction ❏ ❏ — — — — —
box required)
Warranty
Weighbridge Structure 5 years 10 years 15 years 10 years 15 years 10 years 10 years
Weight Sensor
Weigh Bar* 5 years 5 years 5 years 5 years 5 years 5 years 5 years
ZT Digital Load Cell 5 years 5 years — — — — —
Suspension System Easi-Post Easi-Post Easi-Post Easi-Post Easi-Post Easi-Post Link
Deck Surface Steel Steel or Concrete Steel or Concrete Steel Steel Steel Steel or Concrete
Finish Paint Paint Paint Paint Paint Paint Paint
Stainless Steel Sheathed Cable       
Stainless Steel Analog J-Box       
ZB210 Digital J-Box       
Guide Rails       
Manholes —   — —  
 = standard  = optional  = consult factory — = not available ❏ = optional (10’ - 12’ widths) * = 10-year with Blue Blanket warranty purchase
