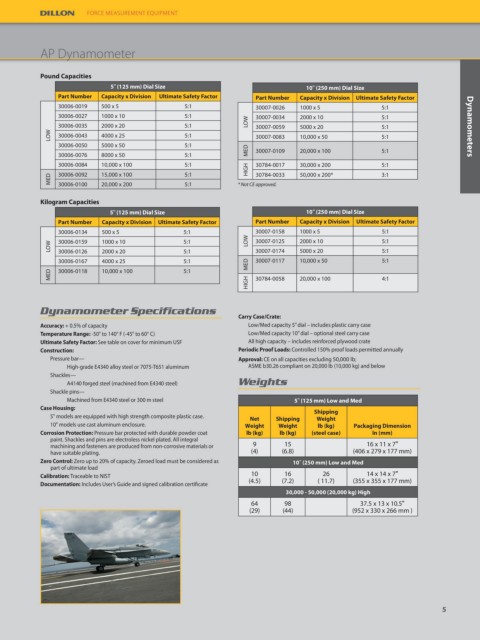

Page 7 - Dillon_2018 Catalog_501427.indd

FORCE MEASUREMENT EQUIPMENT

AP Dynamometer

Pound Capacities
5" (125 mm) Dial Size 10" (250 mm) Dial Size
Part Number Capacity x Division Ultimate Safety Factor Part Number Capacity x Division Ultimate Safety Factor
30006-0019 500 x 5 5:1 30007-0026 1000 x 5 5:1
30006-0027 1000 x 10 5:1 30007-0034 2000 x 10 5:1
30006-0035 2000 x 20 5:1 LOW 30007-0059 5000 x 20 5:1 Dynamometers/Crane Scales
LOW 30006-0043 4000 x 25 5:1 30007-0083 10,000 x 50 5:1
30006-0050 5000 x 50 5:1
30006-0076 8000 x 50 5:1 MED 30007-0109 20,000 x 100 5:1
30006-0084 10,000 x 100 5:1 HIGH 30784-0017 30,000 x 200 5:1
30784-0033
MED 30006-0092 15,000 x 100 5:1 * Not CE approved. 50,000 x 200* 3:1
5:1
30006-0100
20,000 x 200
Kilogram Capacities
5" (125 mm) Dial Size 10" (250 mm) Dial Size
Part Number Capacity x Division Ultimate Safety Factor Part Number Capacity x Division Ultimate Safety Factor
30006-0134 500 x 5 5:1 30007-0158 1000 x 5 5:1
LOW 30006-0159 1000 x 10 5:1 LOW 30007-0125 2000 x 10 5:1
5000 x 20
5:1
30007-0174
30006-0126
5:1
2000 x 20
30006-0167 4000 x 25 5:1 MED 30007-0117 10,000 x 50 5:1
MED 30006-0118 10,000 x 100 5:1 30784-0058 20,000 x 100 4:1
HIGH
Dynamometer Specifications
Carry Case/Crate:
Accuracy: + 0.5% of capacity Low/Med capacity 5” dial – includes plastic carry case
Temperature Range: -50° to 140° F (-45° to 60° C) Low/Med capacity 10” dial – optional steel carry case
Ultimate Safety Factor: See table on cover for minimum USF All high capacity – includes reinforced plywood crate
Construction: Periodic Proof Loads: Controlled 150% proof loads permitted annually
Pressure bar— Approval: CE on all capacities excluding 50,000 lb;
High-grade E4340 alloy steel or 7075-T651 aluminum ASME b30.26 compliant on 20,000 lb (10,000 kg) and below
Shackles—
A4140 forged steel (machined from E4340 steel) Weights
Shackle pins—
Machined from E4340 steel or 300 m steel 5” (125 mm) Low and Med
Case Housing: Shipping
5" models are equipped with high strength composite plastic case. Net Shipping Weight
10" models use cast aluminum enclosure. Weight Weight lb (kg) Packaging Dimension
Corrosion Protection: Pressure bar protected with durable powder coat lb (kg) lb (kg) (steel case) In (mm)
paint. Shackles and pins are electroless nickel plated. All integral
machining and fasteners are produced from non-corrosive materials or 9 15 16 x 11 x 7"
have suitable plating. (4) (6.8) (406 x 279 x 177 mm)
Zero Control: Zero up to 20% of capacity. Zeroed load must be considered as 10” (250 mm) Low and Med
part of ultimate load
Calibration: Traceable to NIST 10 16 26 14 x 14 x 7"
(4.5) (7.2) ( 11.7) (355 x 355 x 177 mm)
Documentation: Includes User’s Guide and signed calibration certificate
30,000 - 50,000 (20,000 kg) High
64 98 37.5 x 13 x 10.5"
(29) (44) (952 x 330 x 266 mm )

5
