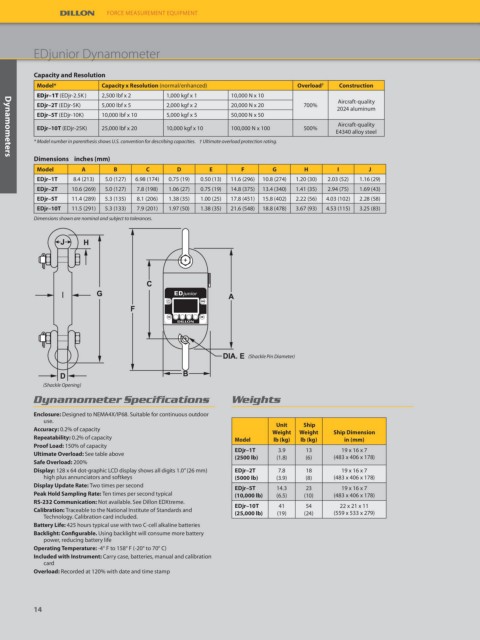

Page 16 - Dillon_2024 Catalog_501427.indd

FORCE MEASUREMENT EQUIPMENT

EDjunior Dynamometer

Capacity and Resolution
Model* Capacity x Resolution (normal/enhanced) Overload † Construction
EDjr–1T (EDjr-2.5K ) 2,500 lbf x 2 1,000 kgf x 1 10,000 N x 10
Aircraft-quality
EDjr–2T (EDjr-5K) 5,000 lbf x 5 2,000 kgf x 2 20,000 N x 20 700%
2024 aluminum
EDjr–5T (EDjr-10K) 10,000 lbf x 10 5,000 kgf x 5 50,000 N x 50
Aircraft-quality
EDjr–10T (EDjr-25K) 25,000 lbf x 20 10,000 kgf x 10 100,000 N x 100 500%
E4340 alloy steel
* Model number in parenthesis shows U.S. convention for describing capacities. † Ultimate overload protection rating.
Dimensions inches (mm)
Dynamometers
Model A B C D E F G H I J
EDjr–1T 8.4 (213) 5.0 (127) 6.98 (174) 0.75 (19) 0.50 (13) 11.6 (296) 10.8 (274) 1.20 (30) 2.03 (52) 1.16 (29)
EDjr–2T 10.6 (269) 5.0 (127) 7.8 (198) 1.06 (27) 0.75 (19) 14.8 (375) 13.4 (340) 1.41 (35) 2.94 (75) 1.69 (43)
EDjr–5T 11.4 (289) 5.3 (135) 8.1 (206) 1.38 (35) 1.00 (25) 17.8 (451) 15.8 (402) 2.22 (56) 4.03 (102) 2.28 (58)
EDjr–10T 11.5 (291) 5.3 (133) 7.9 (201) 1.97 (50) 1.38 (35) 21.6 (548) 18.8 (478) 3.67 (93) 4.53 (115) 3.25 (83)
Dimensions shown are nominal and subject to tolerances.

I

(Shackle Pin Diameter)

(Shackle Opening)
Dynamometer Specifications Weights

Enclosure: Designed to NEMA4X/IP68. Suitable for continuous outdoor
use. Unit Ship
Accuracy: 0.2% of capacity Weight Weight Ship Dimension
Repeatability: 0.2% of capacity Model lb (kg) lb (kg) in (mm)
Proof Load: 150% of capacity EDjr–1T 3.9 13 19 x 16 x 7
Ultimate Overload: See table above (2500 lb) (1.8) (6) (483 x 406 x 178)
Safe Overload: 200%
Display: 128 x 64 dot-graphic LCD display shows all digits 1.0” (26 mm) EDjr–2T 7.8 18 19 x 16 x 7
high plus annunciators and softkeys (5000 lb) (3.9) (8) (483 x 406 x 178)
Display Update Rate: Two times per second EDjr–5T 14.3 23 19 x 16 x 7
Peak Hold Sampling Rate: Ten times per second typical (10,000 lb) (6.5) (10) (483 x 406 x 178)
RS-232 Communication: Not available. See Dillon EDXtreme. EDjr–10T 41 54 22 x 21 x 11
Calibration: Traceable to the National Institute of Standards and (25,000 lb) (19) (24) (559 x 533 x 279)
Technology. Calibration card included.
Battery Life: 425 hours typical use with two C-cell alkaline batteries
Backlight: Configurable. Using backlight will consume more battery
power, reducing battery life
Operating Temperature: -4° F to 158° F (-20° to 70° C)
Included with Instrument: Carry case, batteries, manual and calibration
card
Overload: Recorded at 120% with date and time stamp
